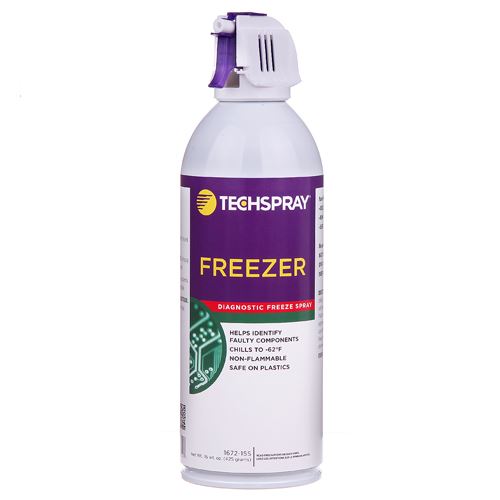

Freezer

100% nonflammable diagnostic freeze spray

Part # Name Size Units
Per Case
Price
Per Case
Case
Qty

1672-10S Freezer - 10oz aerosol 10 oz (284g) 12 $215.16
1672-15S Freezer - 15oz aerosol 15 oz (425g) 12 $297.36
Packaging Order minimum case quantity only. Extra shipping fees may apply.
Order from an authorized distributor
Rapidly evaporating liquid that super-chills isolated areas. Used as a troubleshooting aid for intermittently faulting capacitors, resistors, semiconductors, and other defective components. It also increases visibility of cold solder joints, cracks in printed circuit boards and oxidized junctions.

New improved formula with lower global warming. (click link for more info)

Features & Benefits

  • Nonflammable
  • Non-ozone depleting
  • Moisture free
  • Zero residue
  • Safe on plastics
  • VOC exempt
  • Chills down to -60°F (-51°C)

Call-outs: GM Powertrain Flint HMA 120993-H, McDonnell Douglas 558-1672-10S

NSN: (1672-10S) 6850-01-406-1356

Applications


FAQ's

How do you use freeze spray?

For failure isolation, energize the suspect PC board. Spray on board to determine the area where the failure is occurring. Attach extension tube and spray on individual components until the failed component has been isolated.

How do I properly dispose of an aerosol can after it is empty?

It may be different state-by-state, so contact your state environmental agency for regional specific regulations. For a general guideline, here is the process according to EPA hazardous waste regulations 40CFR. The can has to be brought to or approach atmospheric pressure to render the can empty. Puncturing is not required, only that it “approach atmospheric pressure”, i.e. empty the can contents until it’s no longer pressurized. This insures that as much contents as is reasonably possible are out of the can. It is then considered “RCRA-empty”. At that point it can be handled as any other waste metal container, generally as scrap metal under the recycling rules. Note that the can is still considered a solid waste at this point (not necessarily hazardous waste).

Is there something I can do with the extension tube (straw) so it doesn’t get lost?

The aerosol trigger sprayers that are common on dusters, freeze sprays, and flux removers, have two ways to store the straw when not in use. The hole at the back of the body of the sprayer is just the right size for the straw to slide into place for storage. The slot below the trigger is also the right size for the straw to snap into place, which also has the advantage of locking the trigger.

Articles

Using Freeze Spray to Diagnose Faulty Electronics
Freezer is used to test electronic equipment for and locate thermal intermittent components and systems, provide heat sink protection for heat sensitive components during soldering and desoldering, perform low-temperature testing of prototype circuitry and electromechanical systems, and locate hairl...
Read This Post
